Electromagnetic Water Meters vs. Electromagnetic Flow Meters: Akin, Yet Distinct in Application

An electromagnetic water meter is a type of electromagnetic flow meter specifically designed for the water supply industry, while electromagnetic flow meters are used for a wide range of liquid measurement scenarios. Grounded upon a shared principle (Faraday's Law of Electromagnetic Induction), they are a far cry from each other concerning environmental adaptability, damage-proof capabilities and demand distinct maintenance frequencies as well as other variations in application scenarios.

Key Takeaways

• Electromagnetic water meters are more suitable for the water supply industry, featuring low power consumption, long-term maintenance-free operation, and strong corrosion resistance, making them ideal for fixed water quality (clean water, wastewater) measurement.

• Electromagnetic flow meters offer greater flexibility, adapting to complex industrial environments such as high temperatures, explosion-proof requirements, and strong corrosion, but with higher maintenance costs.

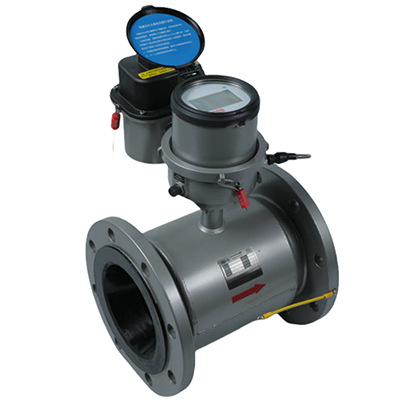

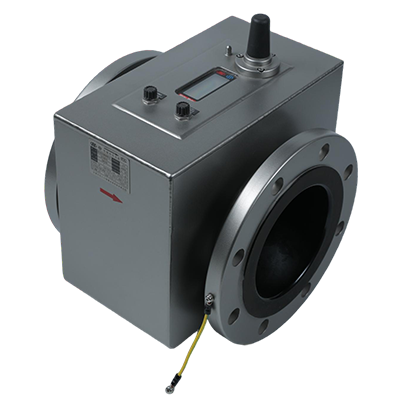

I. Features and Applications of Electromagnetic Water Meters (EWM)

Electromagnetic water meters (EWM) are primarily found in water supply measurement, catering to, above all, water metering in urban water supply networks, across a region, and the billing of users with large monthly consumption. Their core advantages include:

1. Optimized Water Supply Management

• Leakage Monitoring: featuring high-precision measurement, EWM contributes to detecting pipeline leaks and low nighttime flows, shaving loss and non-revenue supply for water utilities.

• Major-User Measurement: with its high-precision in distribution and on-the-clock availability, EWM is rendered ideal for water-consuming scenarios from industrial to commercial.

2. Strong Adaptability

• Easy Installation: stringently in accordance with IP68 protection rating, EWM is designed with minimized requirement for straight pipe sections, and can be installed both within meter wells or on ground environments.

• Energy Efficiency: A 3.6V lithium battery can ensure up to 6 years of operation, eliminating the need of external power sources.

3. Durable and Maintenance-Free

• Made entirely from Stainless-Steel, EWM is highly corrosion-resistant and resilient under aggresive liquid circumstances, making perfect monitoring devices for wastewater treatment plants during discharge.

• Zero Pressure Loss & No Wear: EWM's straight-through design effectively prevents clogging and maintains high precision over long-term use.

• Long Maintenance Cycle: EWM only needs a maintenance check every other 2 years, which is a span far exceeding that of the mechanical water meters.

4. Smart Functions

• Self-Diagnostic Technique: EWM is capable of automatically detecting issues like empty pipes, wiring faults, and low battery, and set alarms if any of these conditions occurs.

• Remote Monitoring (GPRS): EWM supports remote data transmission, paring back on on-site maintenance expenses.




II. Features and Applications of Electromagnetic Flow Meters

Electromagnetic flow meters have a broader range of applications, covering industries such as chemical, petroleum, food, and pharmaceuticals, and can measure conductive liquids (e.g., acids, alkalis, slurries, wastewater). Their environmental adaptability differs from electromagnetic water meters mainly in the following aspects:

1. Wider Temperature Range

• Electromagnetic Water Meter: 0.1~55°C, suitable for standard water supply environments.

• Electromagnetic Flow Meter: -20~55°C (some high-temperature models can operate under 180°C), adaptable to complex industrial conditions.

2. Flexible Protection Ratings

• Electromagnetic Water Meter: Typically uses IP68 (waterproof for 10 days at 2 meters underwater), suitable for long-term submersion or humid environments.

• Electromagnetic Flow Meter: Offers various protection ratings based on needs:

• IP66 (resistant to water jets, suitable for outdoor environments).

• IP68 (submersible type, suitable for wastewater treatment and river monitoring).

• Explosion-Proof (Ex d IIC T6, for flammable and explosive environments like chemical plants and mines).

3. Higher Maintenance Requirements

• Electromagnetic water meters are often left unattended for long periods, emphasizing stability and minimal maintenance.

• Electromagnetic flow meters typically require professional maintenance at regular intervals (around 1 year), with more frequent inspections needed for special conditions (e.g., highly corrosive media).

III. Summary Comparison

Sources

1. American Water Works Association (2022). Manual M6: Water Meters - Selection, Installation, Testing, and Maintenance. 5th ed.

2. International Organization for Standardization (2020). ISO 6817: Measurement of conductive liquid flow in closed conduits.

3. OIML R49 (2013). Water meters for cold potable water and hot water.

4. International Water Association (2023). Smart Water Networks: Global Best Practices.
