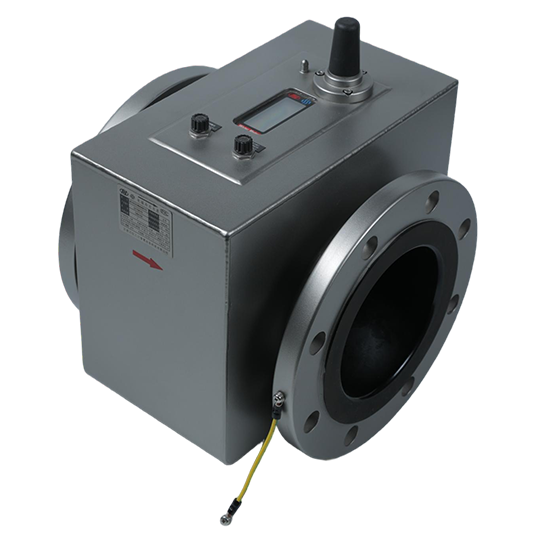

Sanchuan K-Series electromagnetic meter features integrated design, IP68 sealing, R630 turndown, 10-year battery, magnetic and temperature immunity—ideal for accurate, maintenance-free smart utility metering.
DN 40 to 300
Dynamic Range up to R630
Communication R485/NB-IoT/4G
Self detection and leakage monitoring
Data Storage up to 10 years
| LXEY-S Electromagnetic Water Meter | |||
| Temperature range | °C | 0.1 ... +50 | |
| Operating temperature | -5 ... +55 | ||
| Storage temperature | -5 ... +55 (>35 °C max. 4 weeks) | ||
| Environmental class | O (Outdoors) | ||
| Meter body material | Stainless Steel | ||
| Nominal pressure | MAP | bar | 16 |
| Communication Module | NB-IoT - 4G - RS485 | ||
| Nominal Diameter | DN | mm | 40 | 50 | 80 | 100 | 150 | 200 | 250 | 300 |
| Permanent flow rate | Q3 | m³/h | 25 | 40 | 100 | 160 | 400 | 630 | 1000 | 1600 |
| Minimum flow rate | Q1 | m³/h | 0.04 | 0.063 | 0.159 | 0.254 | 0.635 | 1 | 1.587 | 2.54 |
| Dynamic (Q3/Q1) | R | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | |
| Overload flow rate | Q4 | m³/h | 31.25 | 50 | 125 | 200 | 500 | 787.5 | 1250 | 2000 |
| Transitional flow rate | Q2 | m³/h | 0.063 | 0.102 | 0.254 | 0.406 | 1.016 | 1.600 | 2.5 | 4.06 |
| Start Flow | Q0 | m³/h | 9 | 9 | 9 | 9 | 10 | 9 | 9 | 10 |
| Overall length | L | mm | 199 | 199 | 200 | 250 | 300 | 350 | 450 | 500 |
| Flange Connection | D | mm | 150 | 165 | 200 | 220 | 285 | 340 | 395 | 445 |
| Height | H | mm | 314 | 314 | 334 | 334 | 327 | 380 | 430 | 477 |
