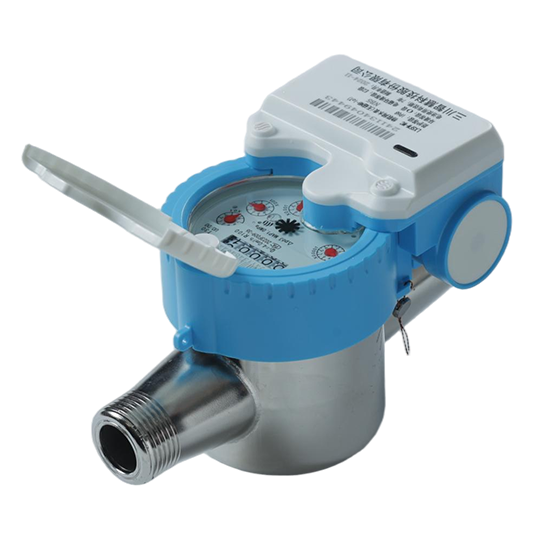

Utilizing eddy-current inductive sensing, this NB-IoT-enabled meter ensures accurate non-magnetic measurement, resisting tampering and magnetic interference. It offers deep-network coverage, low-power long-range connectivity with valve control, encrypted communications, remote shutoff, and onsite battery replacement. IP68-sealed and two-sensor verified, it's perfect for secure, smart-city deployments.
DN 15 to 25
CPA approved with dynamic range up to R160
Remote meter reading via remote module(NB-IoT, LoRaWAN)
| LXSFW-WC Non-magnetic Smart Water Meter | |||
| Medium temperature range | °C | 0.1 ... +50 | |
| Ambient operating temperature | -25 ... +50 | ||
| Housing material | Stainless Steel | ||
| Nominal pressure | MAP | bar | 16 |
| Accuracy class | 2 | ||
| Indicating range(m3) | 0-99999.9999 | ||
| Nominal Diameter | DN | mm | 15 | 15 | 20 | 20 | 25 | 25 |
| Model Name | LXSFW-15 | LXSFW-15 | LXSFW-20 | LXSFW-20 | LXSFW-25 | LXSFW-25 | ||
| Permanent flow rate | Q3 | m³/h | 2.5 | 2.5 | 4 | 4 | 6.3 | 6.3 |
| Minimum flow rate | Q1 | L/h | 15.625 | 25 | 25 | 40 | 39.375 | 63 |
| Dynamic (Q3/Q1) | R | 160 | 100 | 160 | 100 | 160 | 100 | |
| Overload flow rate | Q4 | m³/h | 3.125 | 3.125 | 5 | 5 | 7.875 | 7.875 |
| Transitional flow rate | Q2 | L/h | 25 | 40 | 40 | 64 | 63 | 101 |

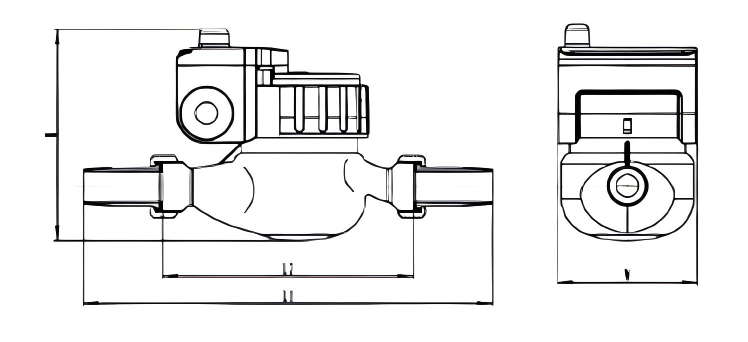

| Overall length | L2 | mm | 165 | 165 | 195 | 195 | 225 | 225 |
| L+unions | L1 | mm | 255 | 255 | 295 | 295 | 341 | 341 |
| Connection thread | Inch | G ¾ | G ¾ | G1 | G1 | G1 ¼ | G1 ¼ |
