Sanchuan LXSG-E5 Multi-Jet Dry Dial Water Meter

Name: LXSG-E5 Multi-Jet Dry Dial Water Meter
Brand: Sanchuan Wisdom Technology Co., Ltd.

Combining robust engineering and precise measurement, this multi-jet dry-dial meter features multiple water jets that drive an impeller connected magnetically to a sealed dry register. Constructed with brass/plastic housing and IP68 sealing, it delivers ISO 4064 Class B accuracy and dry-register safety. The mechanical design ensures low maintenance and long-term stability. With optional pulse-output or remote-reading modules, it fits seamlessly into AMR/AMI systems, making it ideal for residential and commercial smart-water deployments.

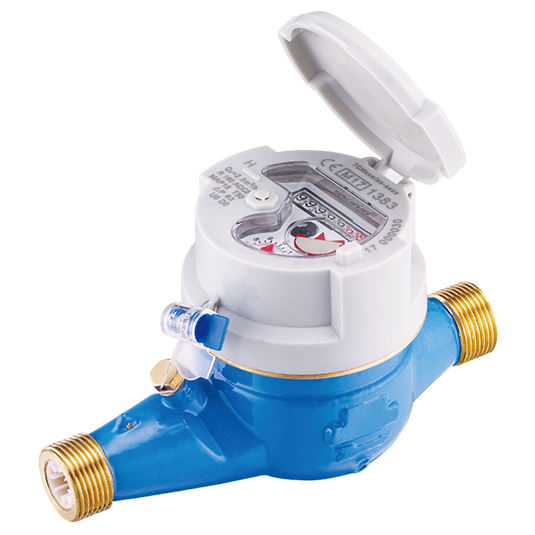

sanchuan lxsg e5 multi jet dry dial water meter product pic

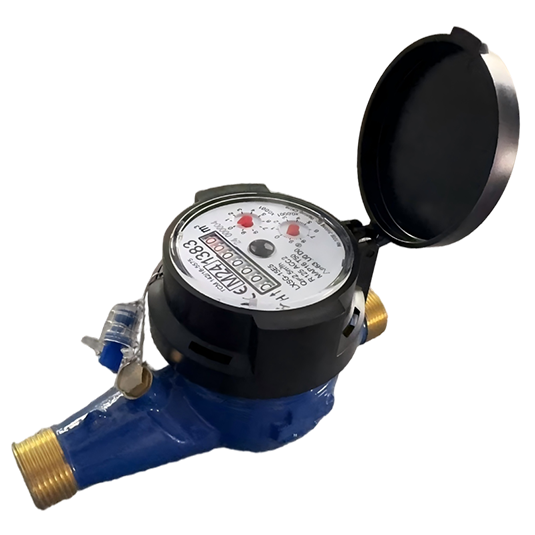

sanchuan lxsg e5 multi jet dry dial water meter product pic 1

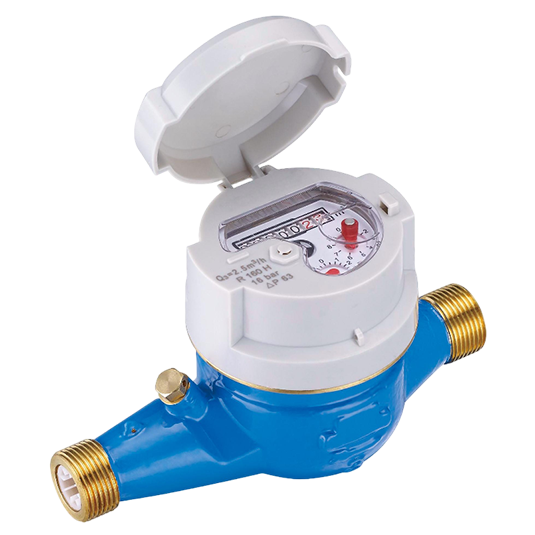

sanchuan lxsg e5 multi jet dry dial water meter product pic 2

Features of LXSG-E5 Multi-Jet Dry Dial Water Meter

● Dry dial, vacuum sealed to keep clean reading for long time

● Available for cold water 0-30℃ and hot water 30-90℃

● Magnetic transmission, Antimagnetic type, 360° Rotating dial

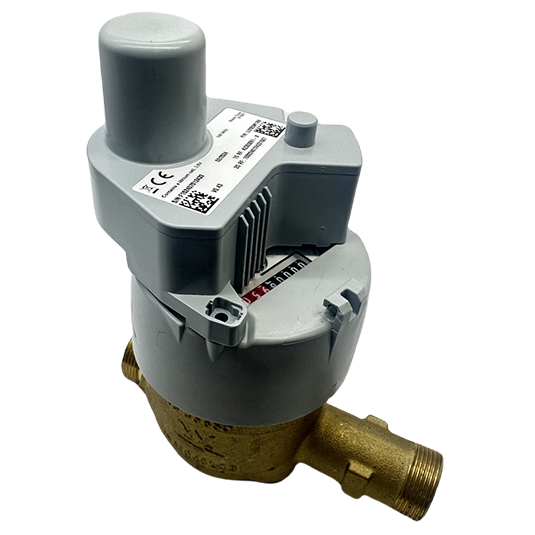

● Remote transmission device can be added upon request

● Pulse output 10L/pulse

Specification of LXSG-E5 Multi-Jet Dry Dial Water Meter

GENERAL INFORMATION

TECHNICAL DATA

DIMENSION

LXSG-E5 Multi-Jet Dry Dial Water Meter
Accuracy Class			2
Maximum Permissible Error	Q2-Q4		±5%
Maximum Permissible Error	Q1-Q2		±2% at ≤30℃, ±3% at >30℃
Temperature Class			T30 and T50
Nominal Pressure	MAP	bar	16
Pressure Loss	∆P	bar	0.63
Indicating range		m3	99999
Resolution of Indicating		m3	0.00005
Flow Profile Sensitive Class			U0D0
Orientation Limitation			Horizontal

Nominal Diameter	DN	mm	15	15	20	20	25	25
Model Name			LXSG-13E5		LXSG-20E5		LXSG-25E5
Permanent flow rate	Q3	m³/h	2.5	2.5	4	4	6.3	6.3
Minimum flow rate	Q1	m³/h	0.025	0.015625	0.04	0.025	0.063	0.039375
Dynamic (Q3/Q1)	R		100	160	100	160	100	160
Overload flow rate	Q4	m³/h	3.125	3.125	5	5	7.875	7.875
Transitional flow rate	Q2	m³/h	0.04	0.025	0.064	0.04	0.1008	0.063
Overall length	L	mm	165	165	190	190	260	260
L+unions	L+u	mm	255	255	286	286	372	372
Connection thread		Inch	G ¾	G ¾	G1	G1	G1¼	G1¼
