● DN 15 to 25
● MID approved with dynamic range up to R 400
● IP 68 suitable for outdoor installations
● Remote meter reading via NB-IoT , LoRaWAN etc., access to AMI network
● Display with error and alarm codes including leakage detection
● Battery lifetime up to 10 years
● U0 / D0, no need for calming sections

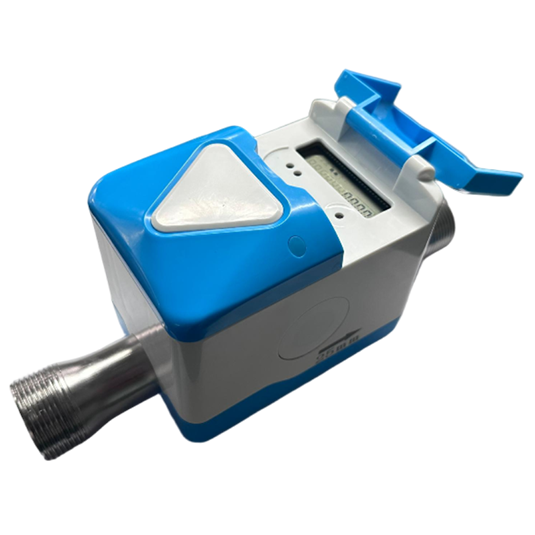

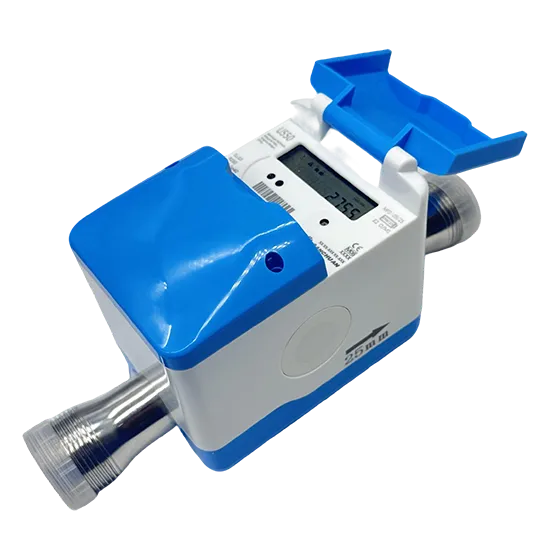

| U550 ULTRASONIC WATER METER | |||
| Medium temperature range | °C | 0.1 ... +50 | |
| Ambient operating temperature | -5 ... +55 | ||
| Ambient storage temperature | -5 ... +55 (>35 °C max. 4 weeks) | ||
| Environmental class | O (Outdoors) | ||
| Meter body material | SS201/304/316L, Brass, Composite | ||
| Nominal pressure | MAP | bar | 16 |
| Power supply | 3.6V DC lithium batteries | ||
| Battery lifetime* | 10 years | ||
| Communication Module | NB-IoT, LoRaWAN, wMBus, Cat 1, 4G. | ||
| Data storage | For errors, alarms and measuring values, data logging capabilities: each 5 min flow data 21 days, daily data 120 days, monthly data 10 years, 50 recent error datas, 2000 event datas. | ||
| Protection class | IP68 | ||
| * Depends on local signal strength, configured online frequency each day and the ambient temperature at the installation. | |||
| Nominal Diameter | DN | mm | 15 | 15 | 20 | 20 | 25 | 25 | 32 | 32 |
| Permanent flow rate | Q3 | m³/h | 2.5 | 2.5 | 4 | 4 | 6.3 | 6.3 | 10 | 10 |
| Minimum flow rate | Q1 | L/h | 6.25 | 10 | 10 | 16 | 15.75 | 25.2 | 25 | 40 |
| Dynamic (Q3/Q1) | R | 400 | 250 | 400 | 250 | 400 | 250 | 400 | 250 | |
| Overload flow rate | Q4 | m³/h | 3.125 | 3.125 | 5 | 5 | 7.875 | 7.875 | 12.5 | 12.5 |
| Transitional flow rate | Q2 | L/h | 10 | 16 | 16 | 26 | 25.20 | 40.32 | 40 | 64 |
| Starting flow rate | L/h | 2 | 2 | 3 | 3 | 5 | 5 | - | - | |
| Max. Pressure Loss | bar | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Nominal Diameter | DN | mm | 15 | 15 | 20 | 20 | 25 | 25 | 32 | 32 |

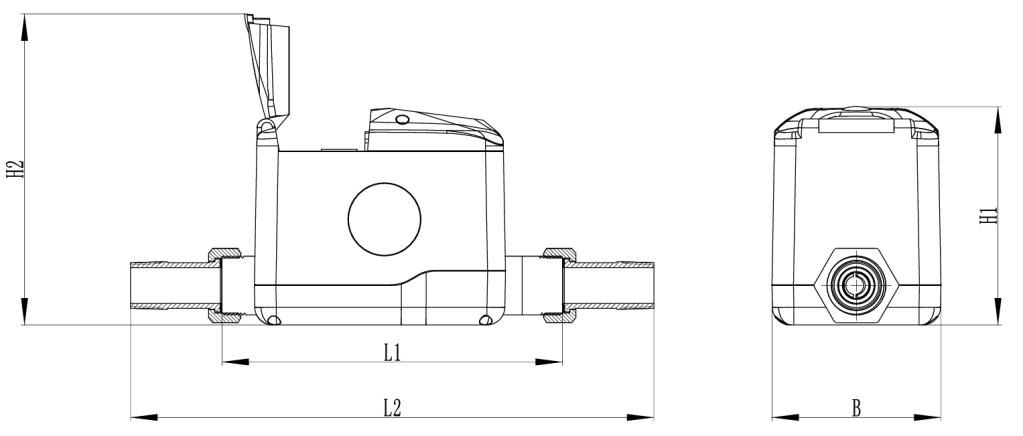

| Overall length | L1 | mm | 110/165 | 110/165 | 130/190 | 130/190 | 260 | 260 | 260 | 260 |
| Overall length with coupling | L2 | mm | 255 | 255 | 290 | 290 | 376 | 376 | 380 | 380 |
| Height | H1 | mm | 122 | 122 | 122 | 122 | 122 | 122 | 135 | 135 |
| Height | H2 | mm | 174 | 174 | 174 | 174 | 174 | 174 | 189 | 189 |
| Width | B | mm | 94.5 | 94.5 | 94.5 | 94.5 | 94.5 | 94.5 | 94.5 | 94.5 |
| Connection thread on meter | Inch | G ¾ | G ¾ | G 1 | G 1 | G 1¼ | G 1¼ | G 1½ | G 1½ | |
| Connection thread of coupling | Inch | R ½ | R ½ | R ¾ | R ¾ | R 1 | R 1 | R 1 ¼ | R 1 ¼ |
