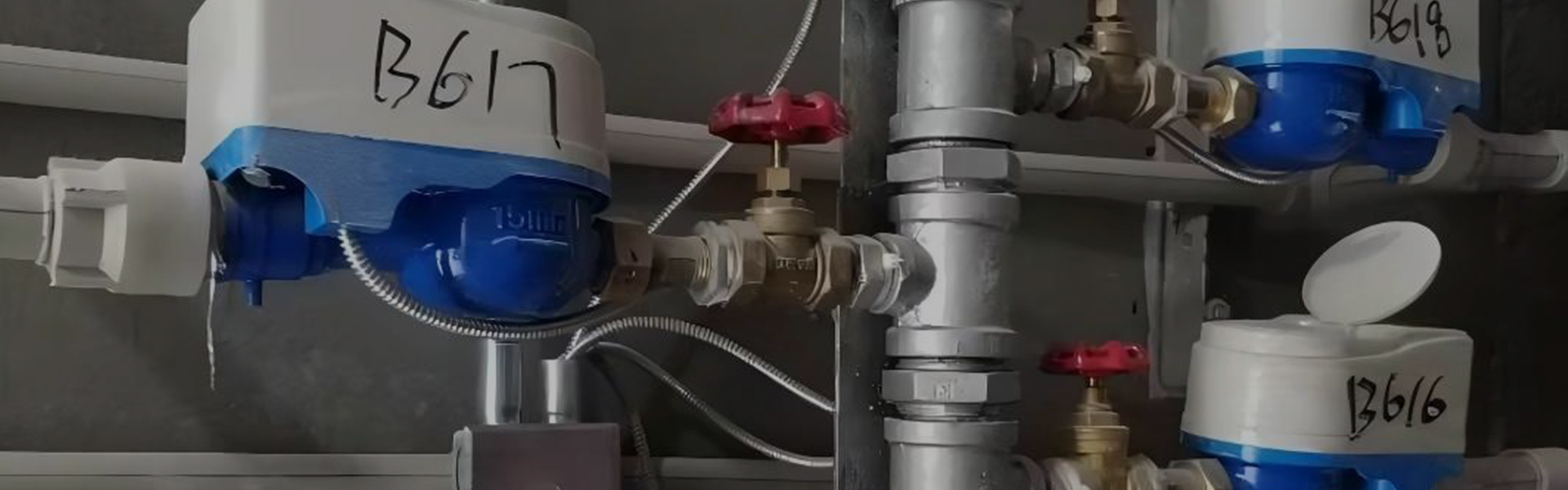

SANCHUAN’s wired water meter integrates seamlessly into existing AMI networks, connecting via M-Bus or fixed-line modules. Ideal for areas with weak wireless signals, it provides automated readings, leak alerts, and uninterrupted data flow—ensuring smart-city coverage without reliance on radio networks.

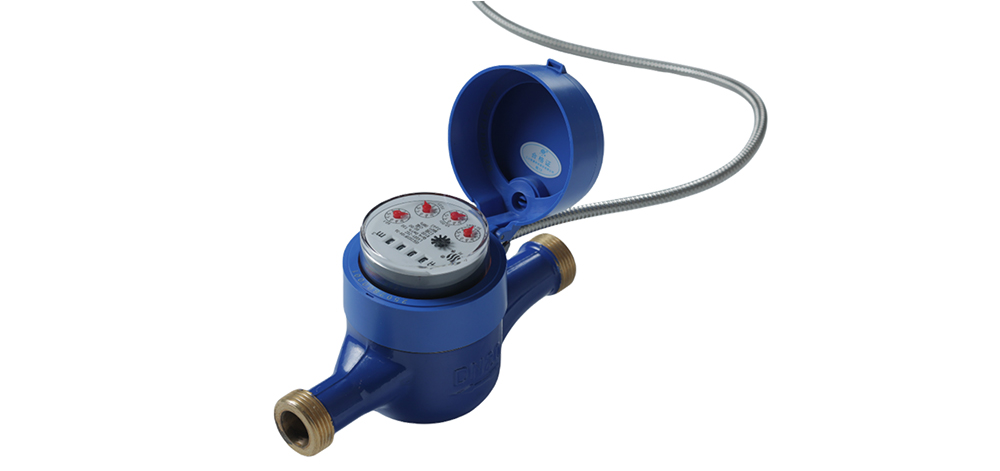

Wired meters commonly use the M-Bus (Meter-Bus) protocol over twisted-pair cables. A master device polls slave meters over two-wire connections, which can also power the meters. It supports long-range (hundreds of meters to kilometers), two-way communication, and is standardized under EN 13757 for reliable data transfer.

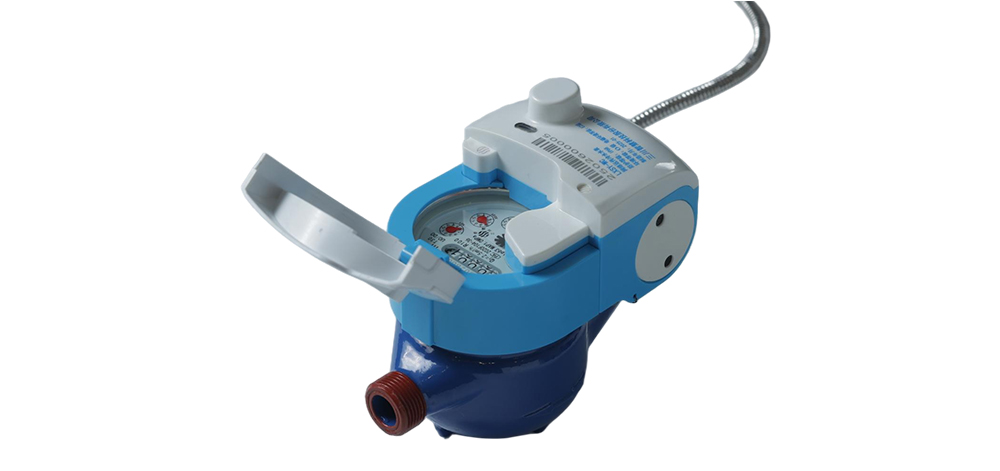

Wired systems like M-Bus offer high stability and reliability, strong noise immunity, low power use, easy scalable mesh of hundreds of meters, long-distance links, and secure hashed data—all at lower operating costs than wireless.
SANCHUAN’s wired water meters support M-Bus compliance, enabling continuous, interference-free operation in areas with poor wireless coverage. Ideal for building and city integration, they offer durable housing, long cable runs, and seamless platform connectivity.
Use M-Bus protocol for mainline and building metering.
Run twisted-pair cable ≤1 km, up to 250 devices per master.
Configure primary addresses, power via line.
Integrate into AMI/HES system with M-Bus gateway.
SANCHUAN meters can integrate with M-Bus modules, allowing reliable two way data via twisted pair cabling. This supports scalable AMI systems—even in areas with poor wireless coverage—with automated readings, device addressing, and meter firmware control.
Wired metering offers stable, interference-free readings, low maintenance, strong security, and long communication ranges (up to 1 km and hundreds of nodes on a single M Bus line). It's ideal where wireless isn't reliable.
SANCHUAN’s wired options include ultrasonic and mechanical meters (DN15–DN50) equipped with M-Bus-compatible pulse modules or integrated M-Bus interfaces—perfect for residential, commercial, or municipal setups in challenging RF environments.
Install meters with M-Bus modules and connect via EN 13757-compliant twisted pair (up to ~1 km; 250 devices).
Use an M-Bus master/gateway for polling and cloud integration.
Calibrate device addresses and power configuration for a stable AMI network.
